Name: 2 Port USB 3.0 HDMI VGA KVM Switch Dual Monitor 4K@60Hz CKL-922HV-3
SKU: 368971

Product Details ＋

KVM SWITCH DUAL MONITOR 2 IN 2 OUT : Control 2 computers or laptops with one set of wired or wireless keyboard, mouse and 2 extended or mirrored monitors at the same time;

USB 3.0 KVM SWITCH 2 COMPUTERS 2 MONITORS: The integrated 2 USB 3.0 HUB ports allows you to share 2 more USB peripherals like printer, scanner, webcam and hard disk between 2 computers with data transfer rate up to 5Gbp/s (10 times faster than USB 2.0); The USB 3.0 cable Also draws power from USB 3.0 port on computers to drive the KVM switch;

HDMI VGA KVM SWITCH 2 PORT 4K 60HZ: Supports maximum resolution up to 3840x2160@60Hz (16:9), 4096x2160@60Hz (4:3) for HDMI output, and 2048*1536@450MHz for VGA output; compatible downwards depending on support of graphic card, monitor and adapters if used any; Supports auto detection and memory function in case of power down;

MULTI PLATFORMS COMPATIBLITY : Cross supports most major operation systems like Windows, Linux, Mac and more; also support switch between devices without keyboard and mouse like DVR and NVR;

EASY SWAPPING BETWEEN 2 DEVICES: You can freely switch between personal and work using push button, keyboard hotkeys, mouse clicks or wired remoter, as well as auto scan for monitoring or testing purpose;

RECOMMENDED FOR COMPUTERS AND LAPTOPS WITH HDMI AND VGA OUTPUT

Sharing Keyboard, Mouse and Dual Monitors between Home Desktop, Work Laptop and Gaming Computers.Does Everything You Need!

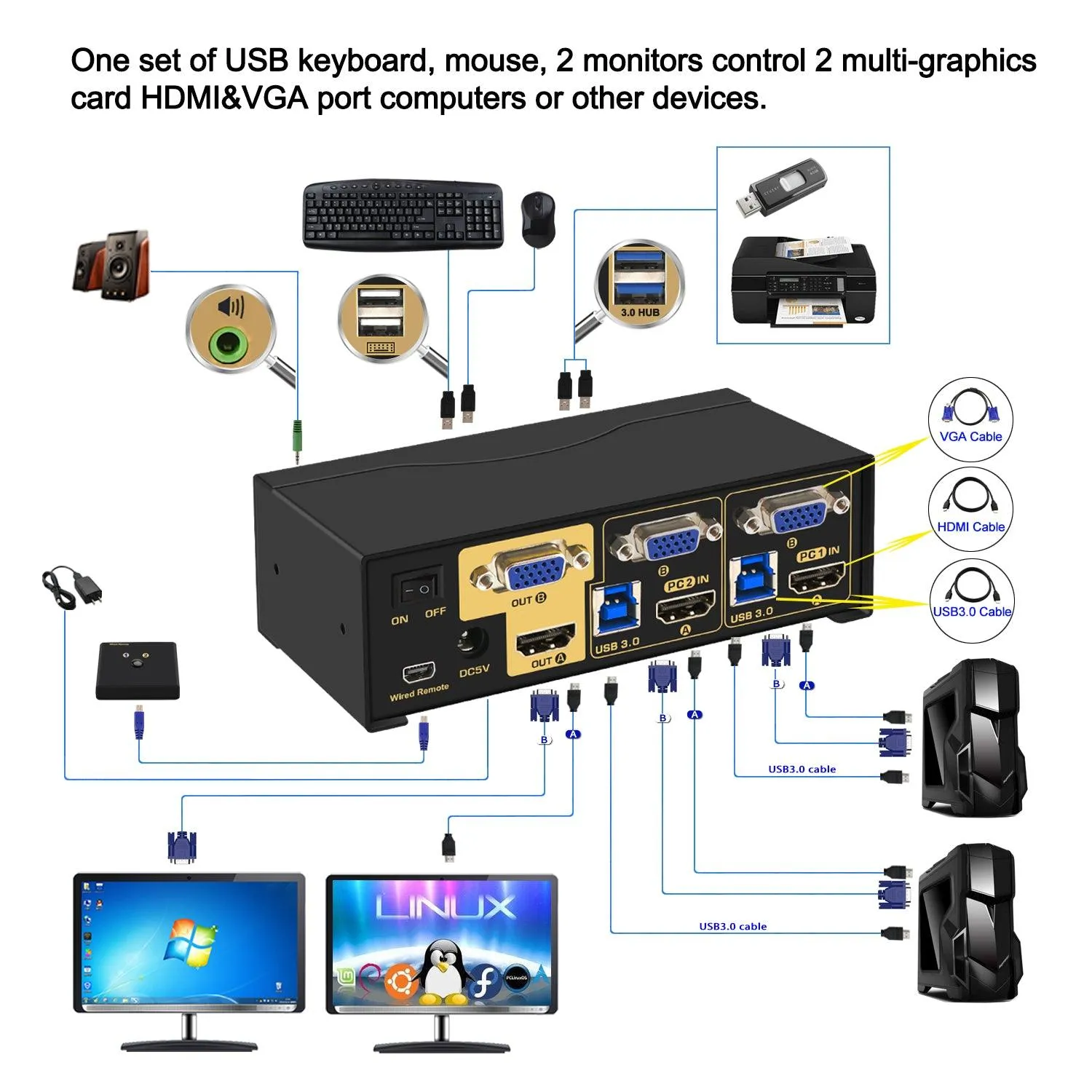

2 computers / laptops share one set of keyboard, mouse, dual monitors and more USB 3.0 peripherals;
Dual monitor outputs support up to 4Kx2K (3840*2160) @60Hz (HDMI), and 2048*1536@450Mhz (VGA) for extended, mirrored or spliced display;
Support wired or wireless keyboard and mouse with USB pass-though technology;

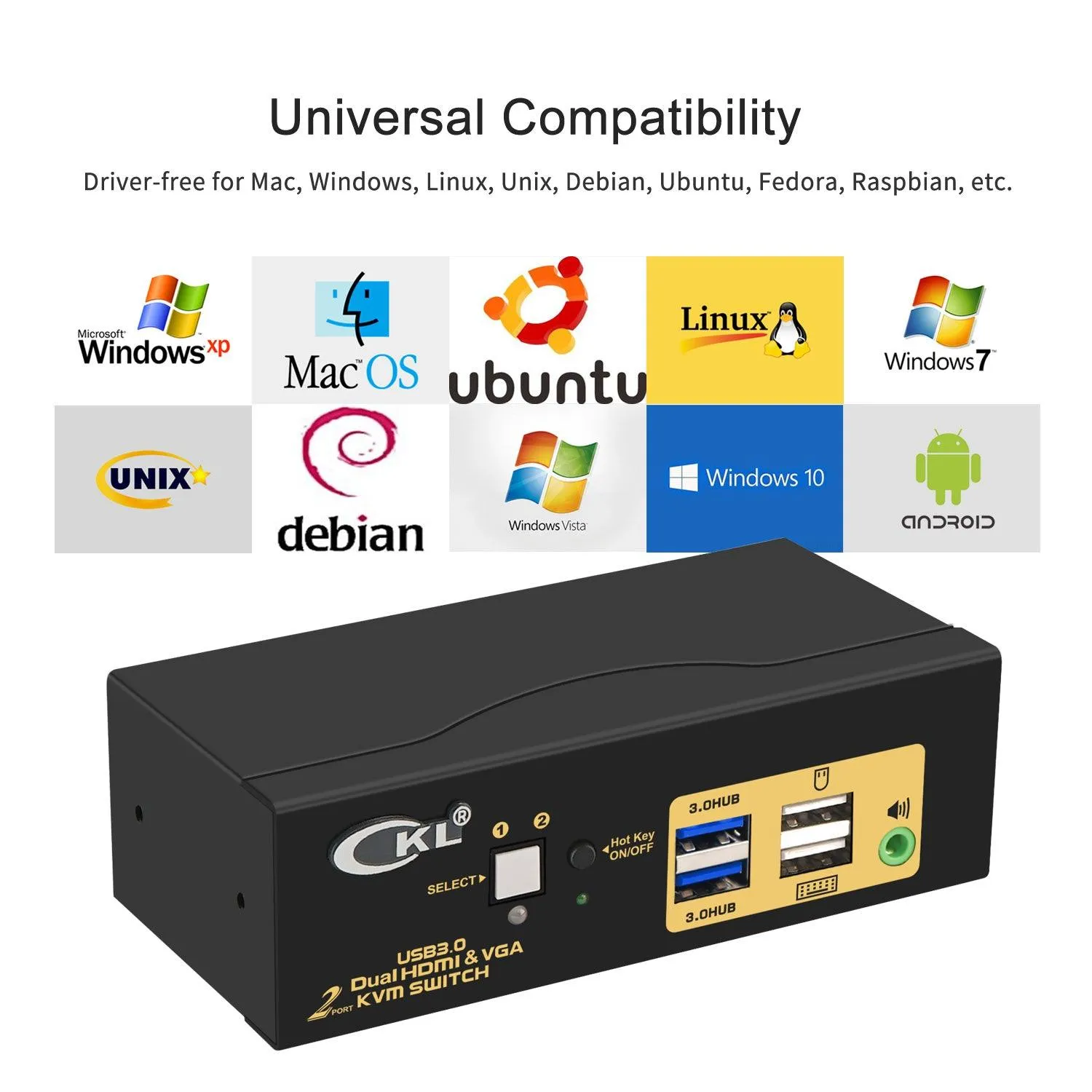

Cross support most major OS including Windows, Linux, Mac;

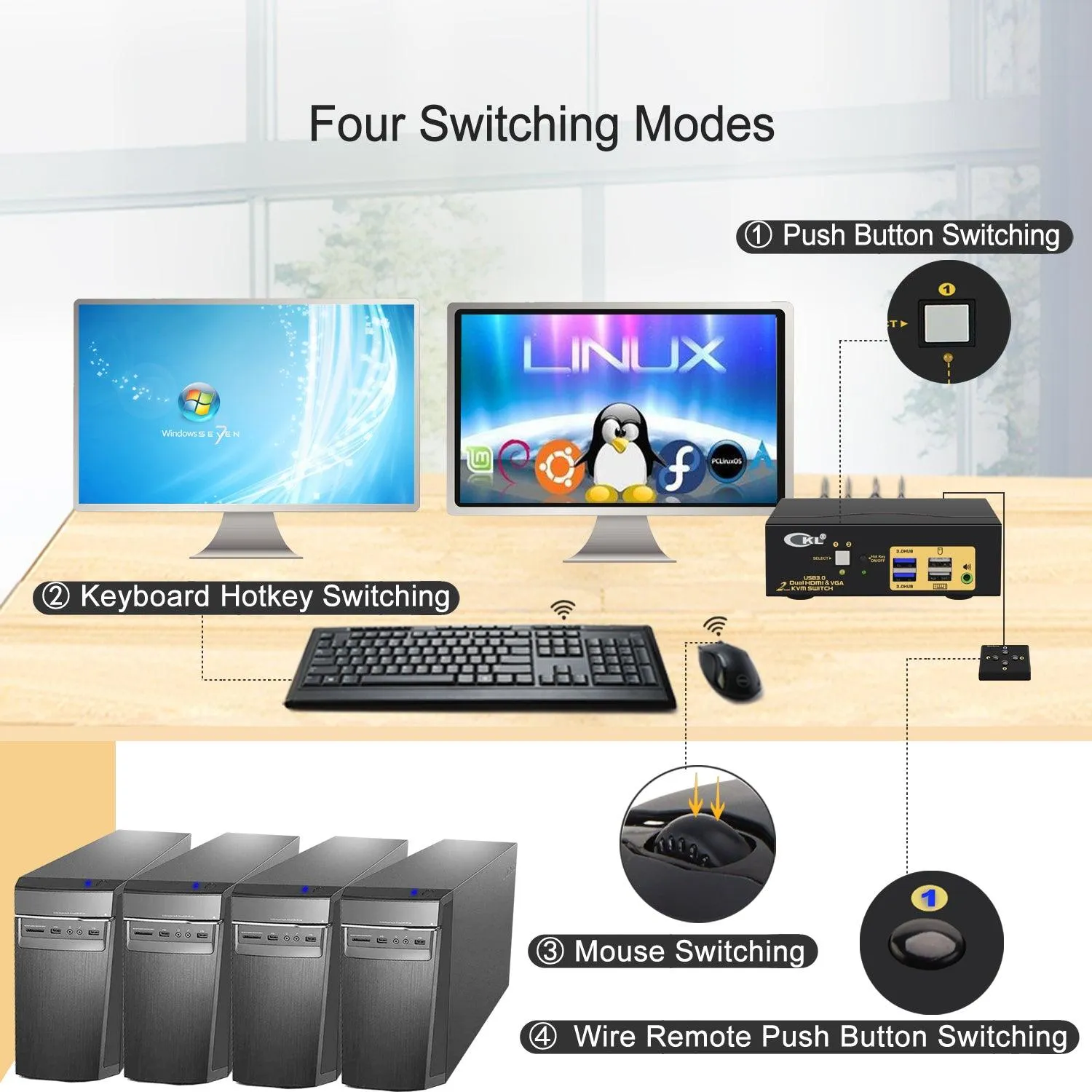

Advanced switching modes: keyboard Hotkey, mouse clicks, push button, auto scan and wired remote;
With 2 extra USB 3.0 HUBs for high speed data transfer up to 5Gbps (10 times faster than USB 2.0) ;
Support HDMI digital audio and swapping between computers;

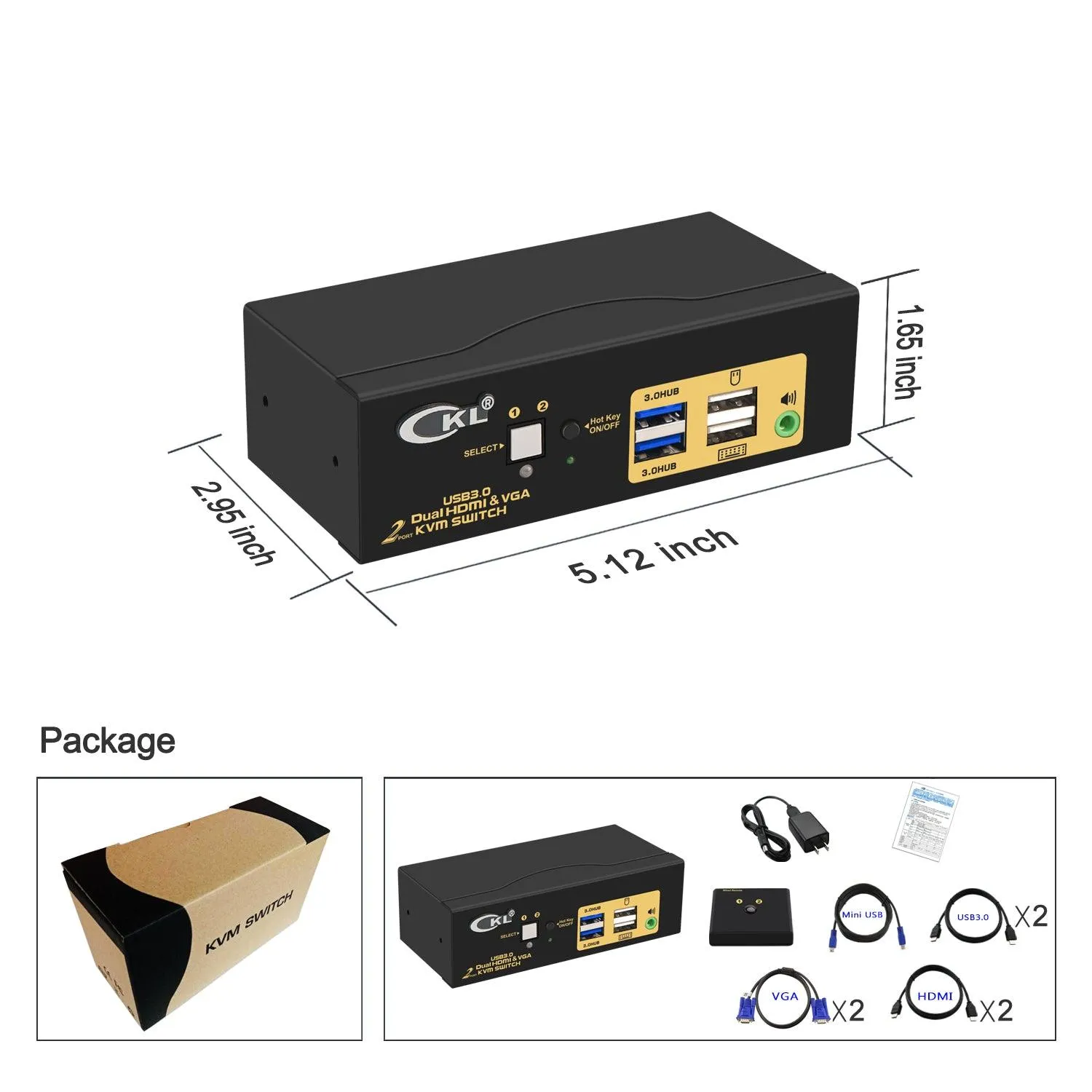

Include all cables needed except cable for monitors.

With 2 Extra USB 3.0 HUB Ports to Share More USB Peripherals Like Webcam, Printer, Scanner, Headset, Harddisk, Jump Drive etc.

How to get Keyboard and Mouse Work

1. Some keyboard with special features like gaming, programing, multi-media, mechnical, back lights may not be well supported on the USB keybaord and mouse port which are dedicated for hotkeys, if so you can plug the keyboard and mouse into the USB 3.0 ports or turn off the hotkey then the USB keyboard and mouse port will turn into standard USB 2.0 port, without hotkeys, you can use the included wired remoter to switch between computers.

2. If you are using wireless set of keyboard and mouse which share a unifying dongle, you can plug the dongle into either the USB keyboard or mouse port (hotkey supported), or USB 3.0 port (no hotkeys).

How to Get Audio Work (Please Read!!!):

This KVM Switch supports HDMI digital output only. Make sure you select HDMI Audio Output or Monitor A audio (monitor on HDMI Out A) as default in your sound settings. Do not select your audio device as the default sound device, otherwise the audio would not work properly. Some older monitors which do not support HDMI audio will not work with the audio function. The workaround is to add an USB to Audio adapterto one of the USB 3.0 HUB ports on the front panel.

Recommended for Computers and Laptops with HDMI and VGA Outputs

This KVM Switch requires HDMI and VGA connection from each computer to the switch and from the switch to monitors. So It is strongly recommended for the following configures:

1. Computers and Laptops with HDMI and VGA graphic outputs;

2. 1 HDMI monitor and 1 VGA monitor

3. Wired or wireless keyboard and mouse

How to Get Audio Work (Please Read!!!):

This KVM Switch supports HDMI digital output only. Make sure you select HDMI Audio Output or Monitor A audio (monitor on HDMI Out A) as default in your sound settings. Do not select your audio device as the default sound device, otherwise the audio would not work properly. Some older monitors which do not support HDMI audio will not work with the audio function. The workaround is to add an USB to Audio adapter to one of the USB 3.0 HUB ports on the front panel.

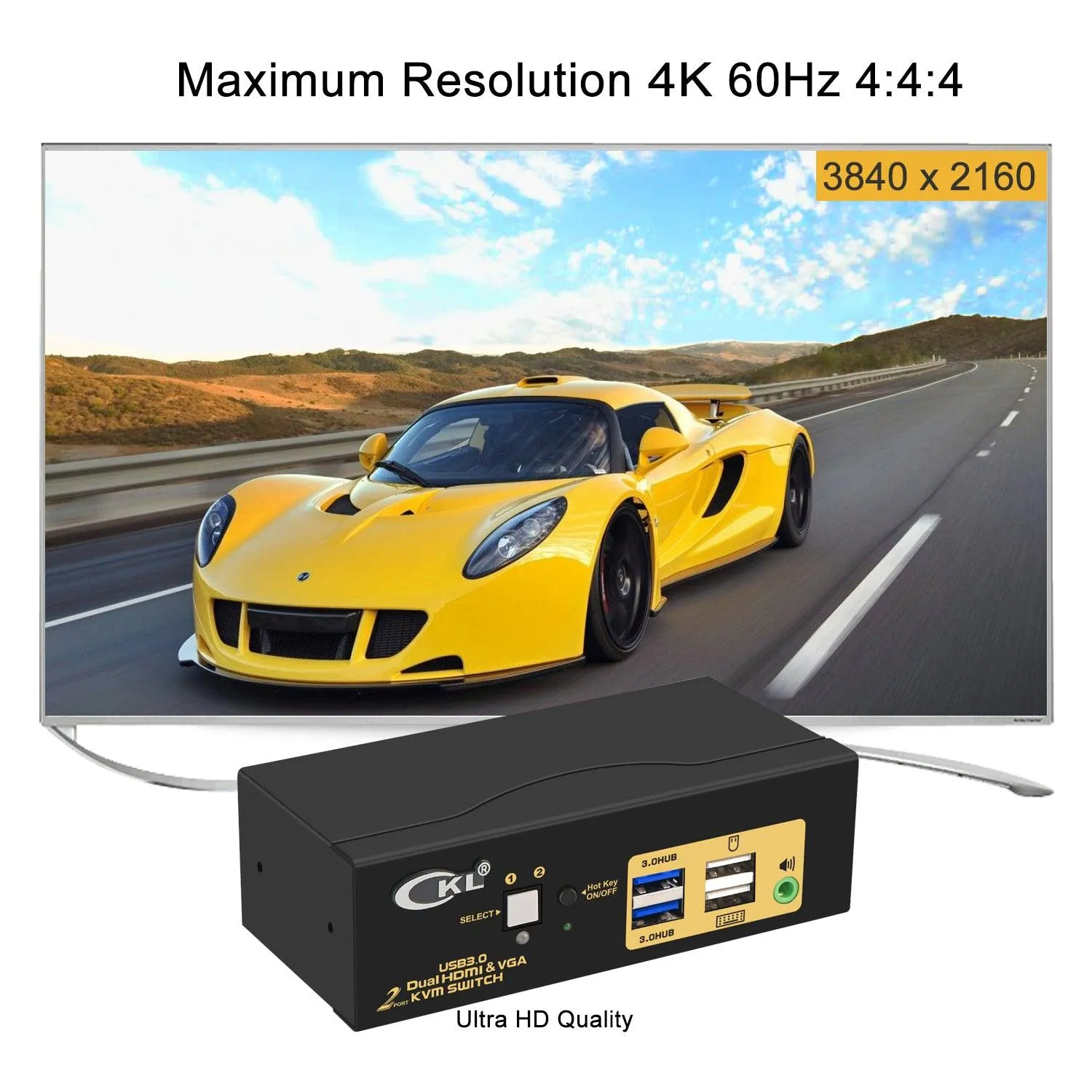

Max. HDMI Output Resolution: 3840x2160@60Hz (16:9), 4096x2160@60Hz （4:3）

Max. VGA Out put Resolution: 2048x1536@450MHz
