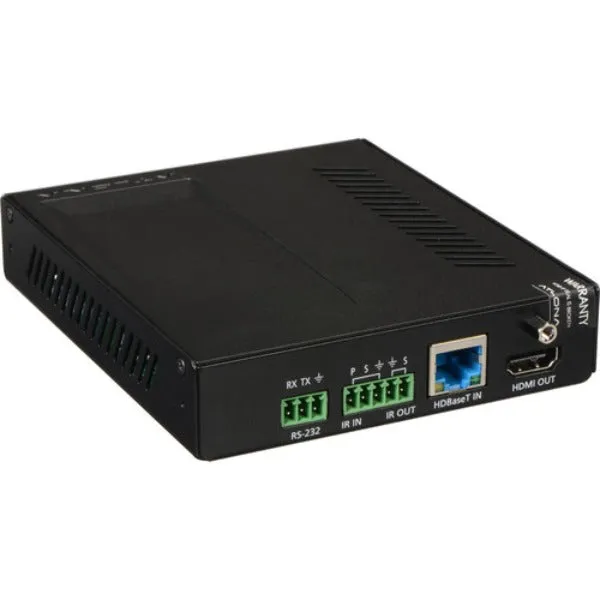

The Atlona AT-UHD-EX-100CE-TX is an HDBaseT transmitter for HDMI transmission up to 328 feet (100 meters) over category cable with Ethernet pass through, plus RS-232 and IR control. Designed to work with HDBaseT inputs on switchers and projectors, this extender transmits video signals up to 4K/UHD @ 60Hz with embedded multi-channel audio. Additionally, the transmitter extends Ethernet, RS-232, and 12 volt-based IR control commands. The AT-UHD-EX-100CE-TX is HDCP 2.2 compliant and supports EDID communication. The transmitter features a quarter rack width metal enclosure for easy rack mounting with rear panel I/O ports for uncluttered wire management. This PSE (Power Sourcing Equipment) device is externally powered, includes a desktop power supply and provides Power over Ethernet for compatible receiving devices. The AT-UHD-EX-100CE-TX is certified by the HDBaseT Alliance.

Specifications

• Resolution
• Video: 4096x2160@24/25/30/50*/60Hz*, 3840x2160@24/25/30/50*/60Hz*, 2048x1080p, [email protected]/24/25/29.97/30/50/59.94/60Hz, 1080i@50/59.94/60Hz, 720p@50/59.94/60Hz, 576p, 576i, 480p, 480i
• VESA: 2560x2048, 2560x1600, 2048x1536, 1920x1200, 1680x1050, 1600x1200, 1600x900, 1440x900, 1400x1050, 1366x768, 1360x768, 1280x1024, 1280x800 1280x768, 1152x768, 1024x768, 800x600, 640x480
• Colorspace: YCbCr, RGB
• Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
• Color Depth: 8-bit, 10-bit, 12-bit
• HDR: 4K HDR10 @ 24Hz, 4:2:0 chroma subsampling, 10-bit color (Source signal delivered from Ultra HD Blu-ray as 4K @ 24Hz 4:2:2. Not compatible with HDR10 @ 60Hz.)
  * 4096x2160@50/60Hz & 3840x2160@50/60Hz supported @ chroma subsampling 4:2:0 8-bit only

  Audio
• Formats: PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital , Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
• Sample Rate: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
• Bit Rate: Up to 24-bit

  Distance
• CAT5e/6 @ 4K: Up to 70 meters (230 feet)
• CAT6a/7 @ 4K: Up to 100 meters (328 feet)
• CAT5e/6 @ 1080p: Up to 100 meters (328 feet)
• HDMI IN/OUT @ 4K: Up to 5 meters (15 feet)
• HDMI IN/OUT @ 1080p: Up to 10 meters (30 feet)

  Signal
• Bandwidth: 10.2 Gbps
• CEC: Pass through
• HDCP: Supports up to 2.2

  Connector
• Firmware: Mini-B USB
• HDBaseT: RJ45 (8P8C)
• HDMI: Type A
• LAN: RJ45 (8P8C), Ethernet pass through
• TX-IR: 4-pin captive screw
• RS-232: 3-pin captive screw
• Power: 2-pin, 48V captive screw

  Temperature
• Operating: 32°F to 122°F (0°C to 50°C)
• Storage: -4°F to 140°F (-20°C to 60°C)
• Humidity: 20 to 90% non-condensing

  Power
• Consumption: 12W (when paired with RX)
• Supply: Input: AC100~240V 50/60Hz
• Output: DC 48V/0.83A

  Dimension
• H x W x D: 25 x 109 x 89 (mm): 0.98 x 4.29 x 3.50 (inch)
• H x W x D w/ears: 27 x 119 x 89 (mm): 1.06 x 4.69 x 3.50 (inch)

  Weight
• Unit: 0.86lbs (0.39kg)
