Name: Cannondale Synapse Neo Allroad 1
SKU: 236804

Product Details ＋

All Roads Are Yours

With a powerful electric drive unit and features for comfort, durability, and practicality, all roads are yours on Synapse Neo Allroad.

Model Description

The Synapse Neo Allroad 1 gravel bike is a dream machine for an adventurous explorer. Built up on a Series 2 carbon construction frameset, with a wireless electronic SRAM Force AXS drivetrain, a Bosch Performance Line SX e-motor, and tough, grippy 40mm tires, it can go just about anywhere you’re ready to explore. It’s practical, too, with mounts for fenders, a rear rack, and even a kickstand.

What it's for

Exploring the backroads with speed and comfort, spirited gravel rides, taking the road less travelled.

Highlights

Lightweight carbon-fiber frame features sophisticated Series 2 Construction and proven endurance race geometry.
Rugged wheels with Vittoria 700x40c gravel endurance tires deliver confidence and grip, on pavement or off.
Bosch Performance Line SX motor offers an ideal combination of low weight and smooth power, delivering up to 55 Nm of torque and 600 watts of output.
Integrated 400Wh battery offers serious range for long rides, and keeps the weight low for a lively ride-feel.

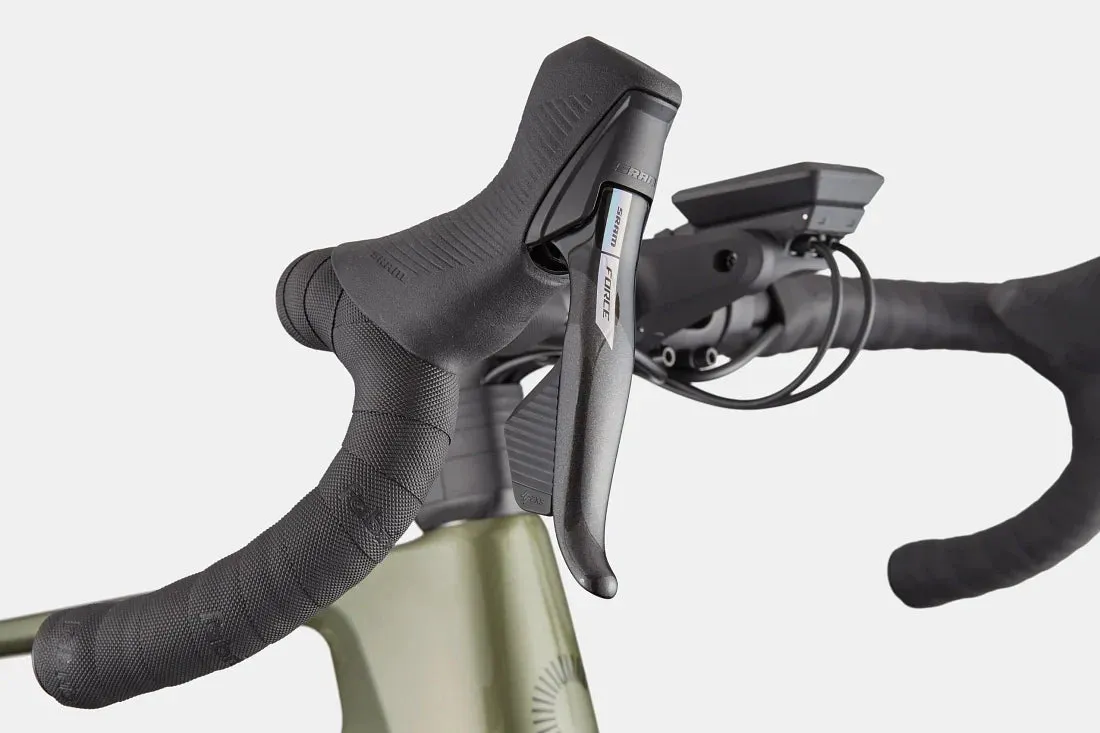

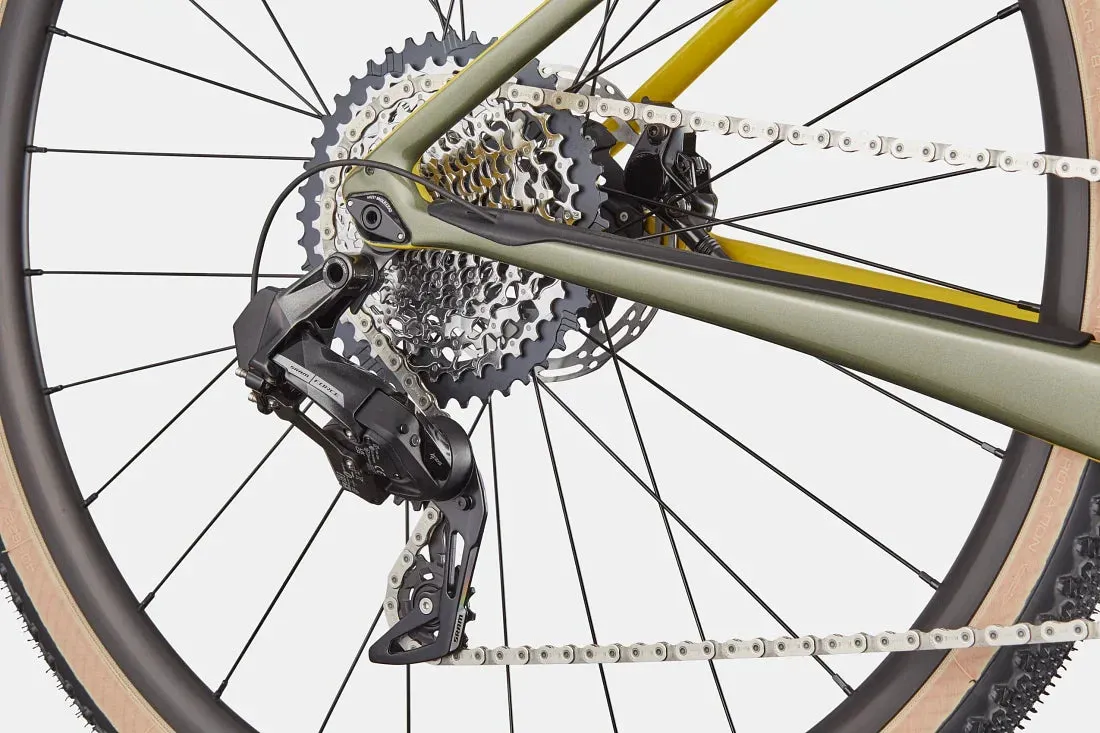

SRAM’s wireless, electronic Force AXS XLPR 12-speed drivetrain delivers wide-range gearing, effortless shifting, and the reliable simplicity of a single chainring set-up.
Flared drop-bars with a Conceal internal-routing stem deliver comfort and control over all kinds of road surfaces.

Specs

DETAILS

Platform
Model Name
Synapse Neo Allroad 1
Model Code
C67154U

FRAMESET

Frame
Synapse Neo Carbon, Series 2 Carbon construction, internal downtube battery, integrated cable routing, 148mm dropout spacing, 12mm thru-axle, SAVE, flat mount disc, Pletscher kickstand mount (30mm)
Fork
Synapse Neo Carbon, Series 2 Carbon construction, 1-1/8" to 1.5" Delta steerer, flat mount disc, internal routing, 12x110 thru-axle
Headset
Integrated, 1-1/8" - 1.5"

E-SYSTEM

Drive Unit
Bosch Performance Line SX, 25 km/h
Battery
Bosch Compact Powertube 400Wh
Charger
Bosch 2A
Display
Bosch Kiox 300

DRIVETRAIN

Rear Derailleur
SRAM Force AXS XPLR
Shifters
SRAM Force eTap AXS HRD, 12-speed
Chain
SRAM NX Eagle, 12-speed
Crank
FSA Bosch E-Bike, SRAM Direct Mount, 38T
Rear Cogs
SRAM XG-1271 XPLR, 10-44, 12-speed

BRAKES

Brakes
SRAM Force AXS, 160/160mm CenterLine X rotors
Brake Levers
SRAM Force eTap AXS

WHEELS

Rims
Cannondale GXD10, alloy double-wall rim, 28h
Spokes
Stainless Steel, 14g
Tire Size
40
Wheel Size
700
Hubs
(F) Formula sealed cartridge bearing, 12x110mm thru-axle / (R) Formula sealed cartridge bearing 12x148mm thru-axle
Tires
Vittoria Terreno Dry, 700x40c, tubeless ready
