Unleash the full potential of your audio system with the Emotiva XPA-3, a powerhouse 3-channel amplifier designed for audiophiles. Delivering an impressive 200 watts per channel at 8 ohms, it effortlessly drives your speakers for rich, dynamic sound that fills any room.
With its advanced Class A/B design, the XPA-3 ensures minimal distortion and maximum clarity, providing an immersive listening experience for music and movies alike. Its robust build features high-quality components and a sleek, modern chassis, making it a perfect addition to your home theater or audio setup. Experience superior sound quality and performance—elevate your audio journey with the Emotiva XPA-3 today!
Warranty:
2-year manufacturer's warranty
Features:
- 200 Watts/Channel
- Class A/B Design
- Three-Channel Output
- Premium Components
- Sleek Aesthetics
- Wide Compatibility
- User-Friendly Setup
Video Review:
Efficient Power Supply Design,Sturdy Construction & Customizable LED Indicators
Emotiva's Soft-Switch Class H topology enhances efficiency by utilizing a lower supply voltage at low power and switching to a higher voltage rail when needed, akin to Class G amplification. The rugged steel chassis and brushed aluminum faceplate ensure durability and a stylish look, while the status LEDs can be turned off easily, leaving the illuminated power button active.

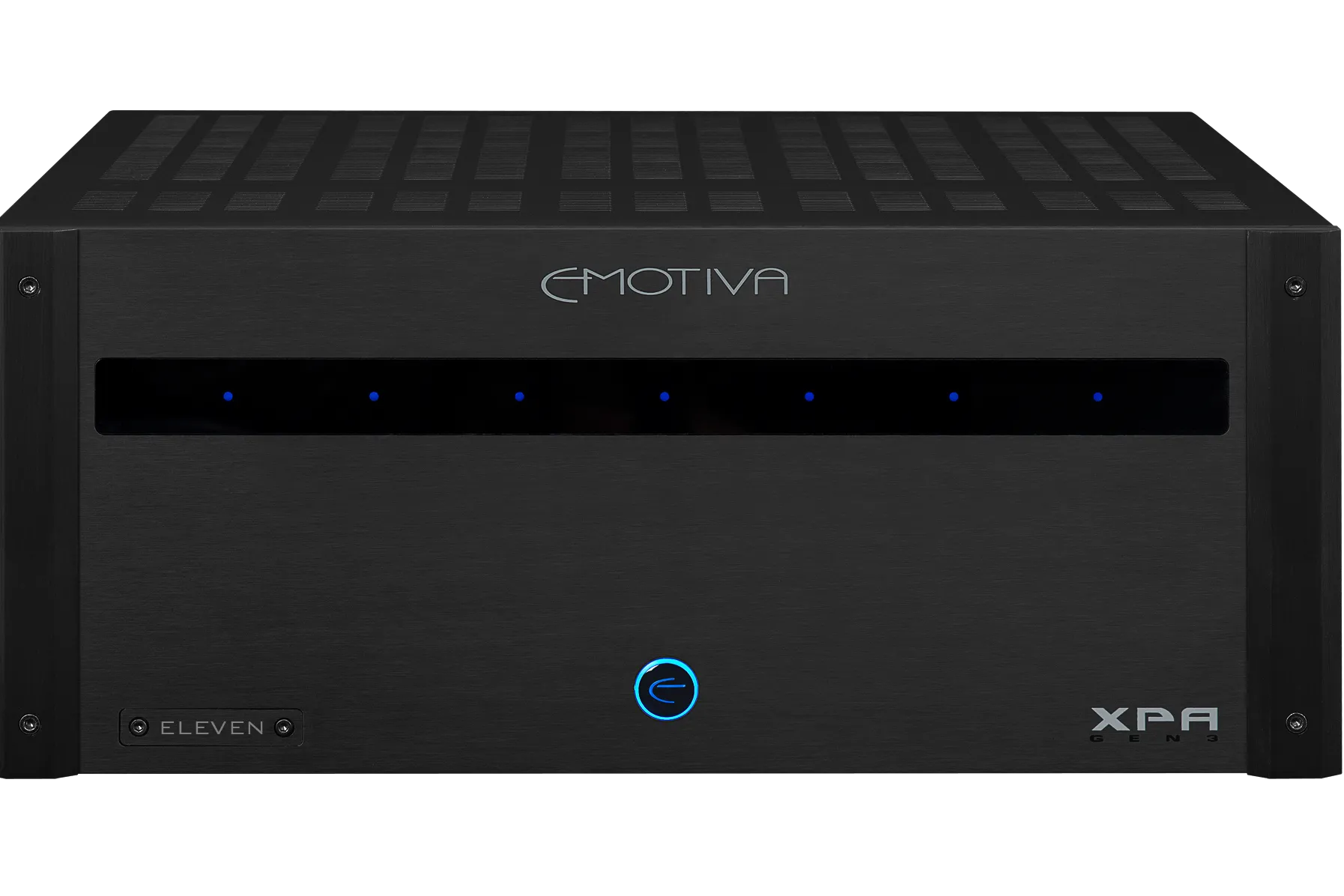

Dynamic Performance of the Emotiva XPA-11
While the XPA-11's specifications may initially seem modest compared to other amplifiers, its real-world performance is impressive. Emotiva's conservative power ratings and efficient switching power supply deliver ample power to drive a 4 ohm/8 ohm speaker setup.
In comparison to my previous Arcam AVR850 and P429 amplifier, the XPA-11 offers a more exciting sound with greater dynamism and attack. During the Blu-ray playback of Roger Waters' Amused to Death, the amplifier excelled at delivering complex mixes, from the striking opening of "What God Wants" to the immersive 5.1 surround sound that filled the room with detail and tight bass.
The XPA-11 showcases its capabilities with the DTS-HD MA 7.1 sound mix of Edge of Tomorrow, effectively enveloping the listener in the chaotic beach landing sequence. It handles dynamic shifts with remarkable precision, ensuring clarity in dialogue and sound effects, even amidst intense action. With effortless power and excellent headroom, the XPA-11 provides an exhilarating listening experience that elevates any home theater setup.
Technical Specifications:
|
Power output (High-Powered Single Channel Modules)
|
300 watts/channel RMS into 8 Ohms; two channels driven
490 watts/channel RMS into 4 Ohms; two channels driven
|
|
Power output (Stereo Modules)
|
65 watts/channel RMS into 8 Ohms; two channels driven
100 watts/channel RMS into 4 Ohms; two channels driven
|
|
Audio
|
Audiophile quality Class A/B output stage |
|
Balance
|
Balanced and unbalanced inputs for compatibility with a wide variety of preamps and surround sound processors |
|
Design Topology
|
Class A/B output stage; Optimized Class H power supply topology on High-Powered Single Channel Modules for improved efficiency
Regulated switch mode power supply combines massive power capability, high reliability, excellent performance, and reduced weight
|
|
Features
|
Fully modular construction for optimum flexibility.
Universal AC power automatically selects the proper line voltage for easy installation in a wide variety of locations.
Comprehensive yet transparent protection circuitry protects from most common fault conditions without degrading sound quality.
|
|
Power Requirements
|
100 – 250 VAC 50/60 Hz (automatically detected)
|
|
Input and Output Connections
|
Input Connections (High-Powered Single Channel Modules):
Unbalanced (RCA); balanced (XLR); one each per channel, independently selectable
Input Connections (Stereo Modules):
2 Unbalanced (RCA); 2 balanced (XLR); two per channel, independently selectable
Speaker Output Connections: Audiophile grade, gold plated, 5-way binding posts
Trigger:
Trigger Input: 5 – 12 V (AC or DC); <10 mA input current required
Trigger Output: 12 VDC; can drive any load up to 120 mA
|
|
Front Panel Controls and Indicators
|
Standby: push button (halo ring changes color to indicate Standby or On)
Status LEDs: one per channel; blue.
Status LEDs change to red to indicate a fault condition
|
|

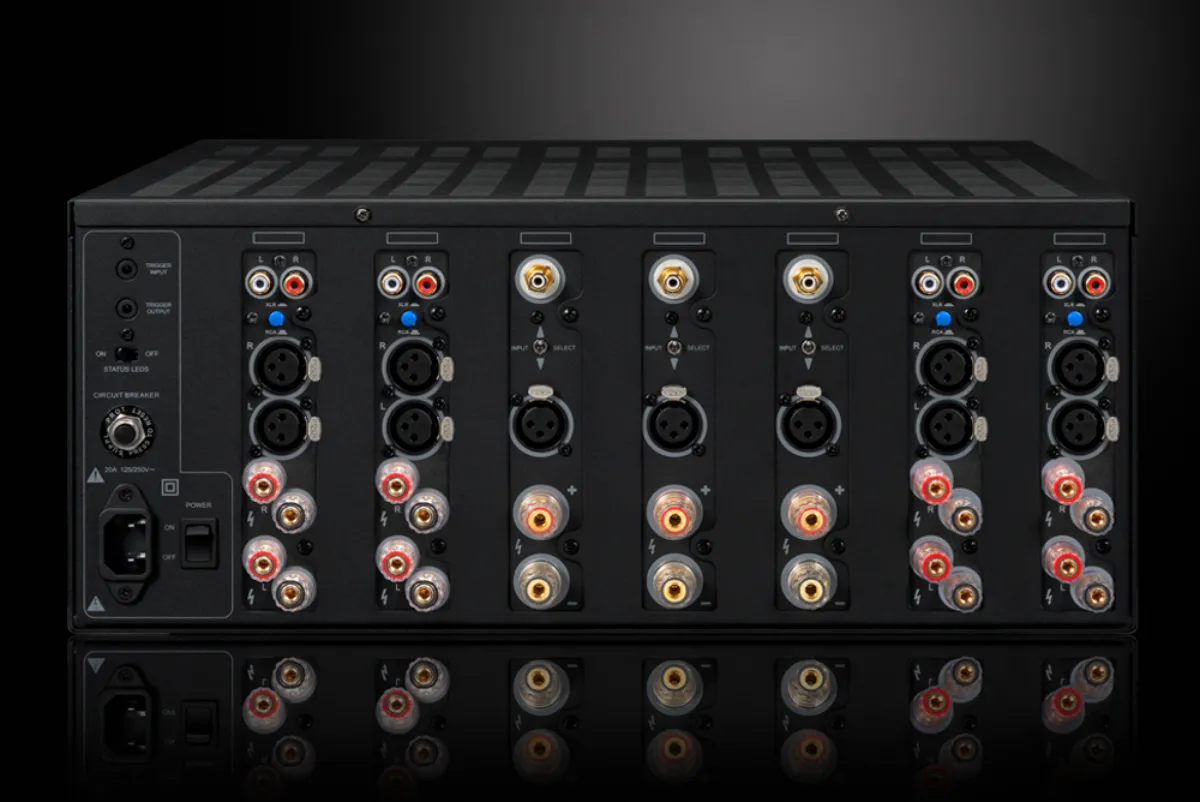

Rear Panel Controls and Indicators
|
AC Power switch: rocker switch (switches AC main power)
Status LEDs switch: disables front panel Status LEDs and dims Standby button halo
Input selector switches (one per channel):
metal toggle switches; select between balanced and unbalanced inputs
Circuit Breaker: press button to reset circuit breaker
|
| Dimension |
17"x 19"x 8" (including feet)
|
| Weight | 24 Kg |
