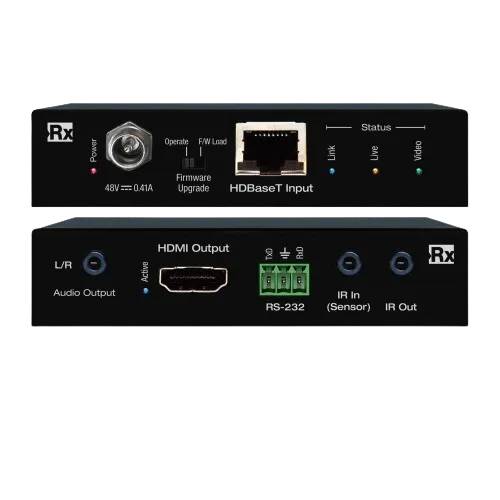

KD-X40MRx is a 4K/UHD, HDCP2.2 compliant HDBaseT receiver with 18Gbps bandwidth for extension of digital video signals with the latest standards in resolution, HDR, and Chroma. KD-X40MRx is sold a la carte to natively integrate with Key Digital HDBaseT wall-plate transmitters, KD-X2x1WDTx or KD-X2x1WVTx. KD-X40MRx provides power to the wall plate transmitter, and de-embed the incoming audio signal for ease of integrating the selected wall plate source with audio systems. In addition to AV signals, KD-X40MRx extends IR and RS-232 for controlling remotely located equipment.

Features

• Signal Extension: 4K/UHD (18G) up to 40m / 131ft. 1080p up to 70m / 230ft
• Tx Options: Sold a-la-carte to integrate natively with KD-X2x1WDTx and KD-X2x1WVTx wall-plate transmitters (sold separately)
• Flexible Power over HDBaseT: Rx powers Tx when integrated with KD-X2x1WDTx / KD-X2x1WVTx. Rx is powered by Tx when integrated with KD-PS42 / KD-UPS42
• Audio De-embedding: Audio of the incoming source is de-embedded at the unit’s analog L/R audio connection for ease of integration with audio systems
• CEC Manager™: Passes through CEC control signals for monitors & projectors when integrated with KD-PS42 / KD-UPS42
• Ultra HD/4K: Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
• Low Profile: Super slim chassis design

Specifications

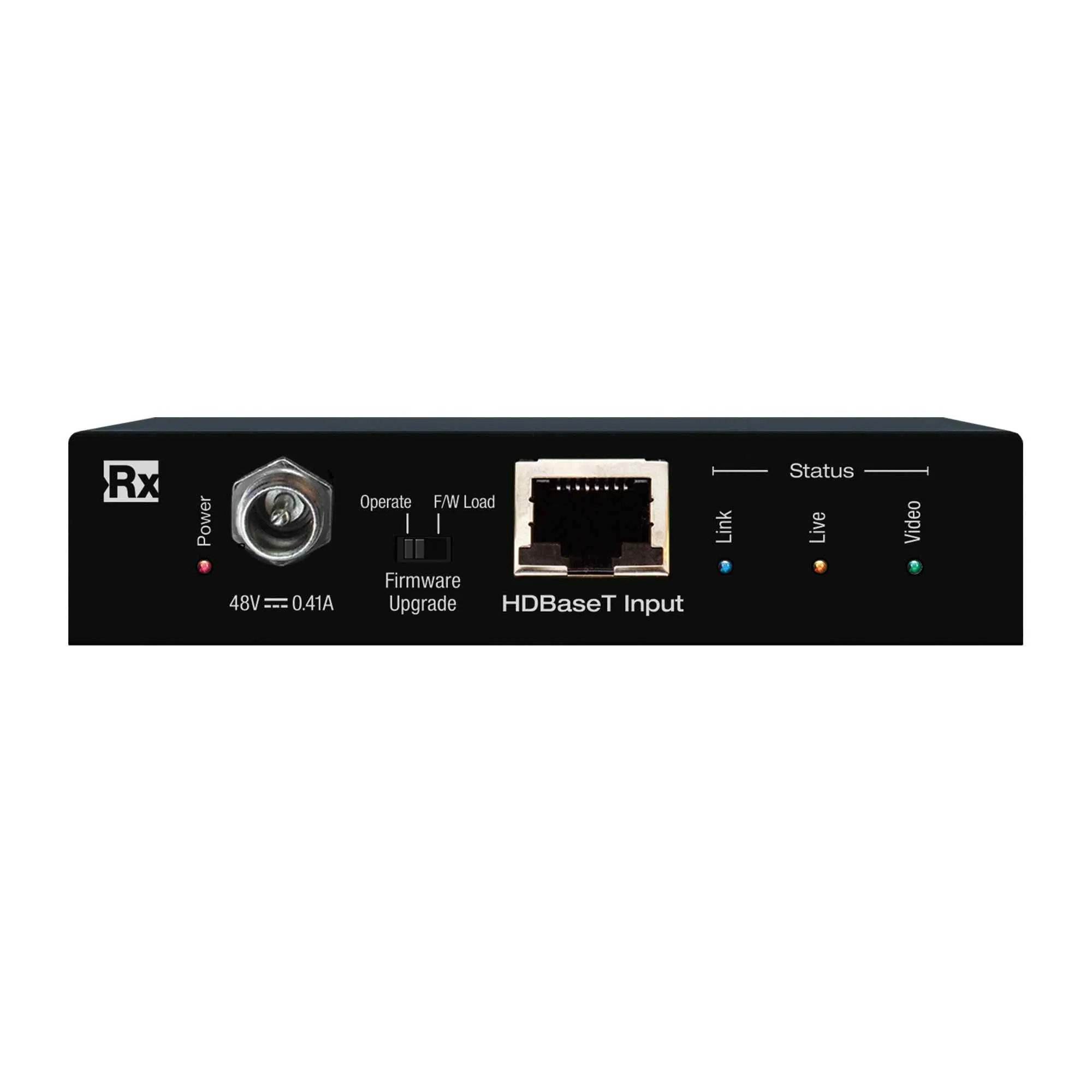

• Inputs: 1 HDBaseT, 1 Bi-Directional RS-232, 1 IR

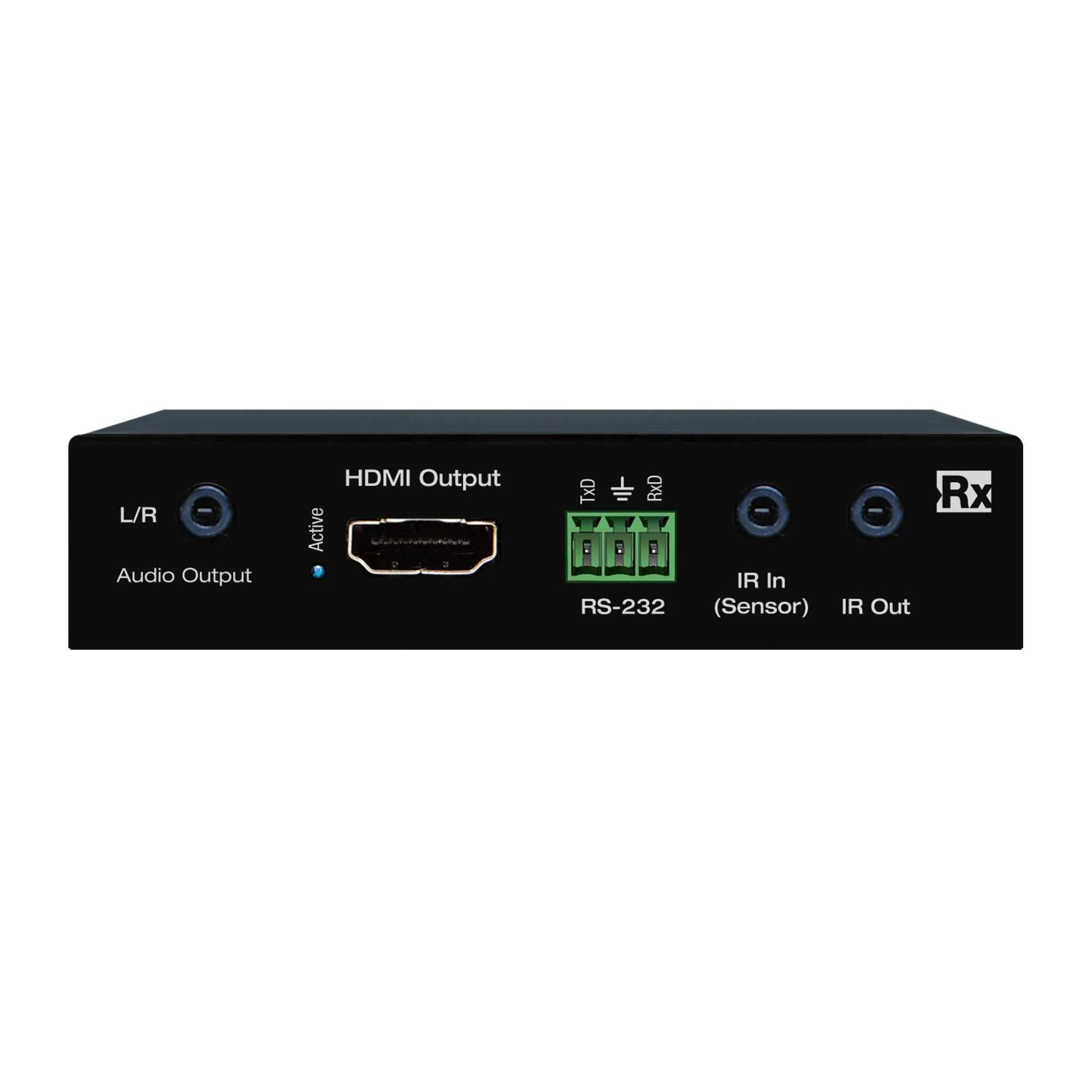

• Outputs: 1 HDMI, 1 L/R Stereo Audio, 1 Bi-Directional RS-232, 1 IR
• DDC Signal (Data): Input DDC Signal: 5 Volts p-p (TTL)
• HDMI Video/Audio Signal: Input Video Signal: 1.2 Volts p-p
• HDMI Connector: Type A, 19 Pin Female
• Audio Connector: 3.5mm Stereo Female
• RJ45 Connector: Shielded Link Connector, HDBaseT
• IR In Connector: 3.5mm Stereo female
• IR Out Connector: 3.5mm Mono female
• RS-232 Connector: 3-pin phoenix terminal

General

• Regulation: CE, RoHS, WEEE, EAC
• Enclosure: Black meta
• Dimensions: 5.35” x 3.95” x 0.9” (136 x 100.4 x 22.95 mm)
• Product Weight: 0.4 lbs
• Packaging: 10” x 7.3” x 2.1” (255 x 185 x 55 mm)
• Packaging Weight: 1.3 lbs
