The same outstanding LUMIN musicality in a more affordable package. Perhaps the most astonishing product in the LUMIN range.
COMPACT CASE
DSD 1285.6MHZ
WOLFSON WM8741 DAC
FULLY BALANCED

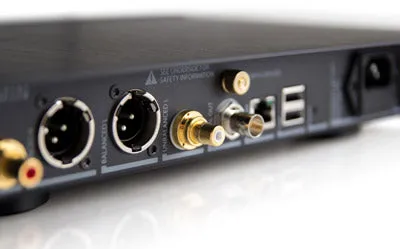

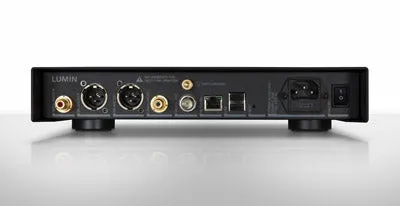

XLR OUTPUTS
INTERNAL POWER SUPPLY
WHY LUMIN D2
WHY LUMIN D2 The most affordable way to bring all of the award-winning LUMIN musicality into your music system.
Retaining the same streaming functionality, Wolfson DAC and fully balanced design of its renowned siblings, LUMIN D2 opens up a world of High Resolution network and internet streaming.
The perfect introduction to audiophile streaming
LUMIN D2 improves on the hugely successful D1 to create a formidable package.
- Faster processor to allow playback of DSD128 5.6MHz
- Internal power supply keeps interference lower and cabling neater

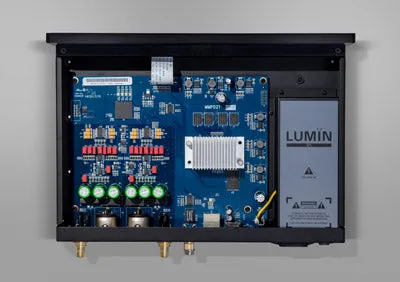

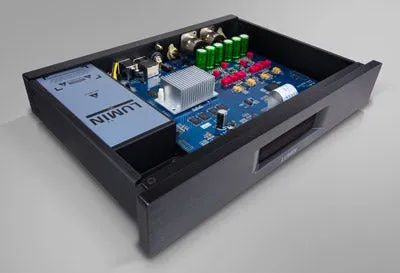

- Wolfson WM8741 DAC chips, 1 chip per channel Retains fully balanced design of the LUMIN family – including XLR outputs
- Compact case with solid aluminium CNC front panel
- Available in black anodised finish as well as raw silver
- Gigabit Ethernet
All the usual LUMIN refinements
- From MQA to DSD, FLAC to WAV, LUMIN can play all the high-resolution formats you could ever want
- Native support for TIDAL, Qobuz, Spotify and AirPlay-compatible, giving you access to tens of millions of songs
- The unique and intuitive LUMIN App described as "the most convenient interface in existence" by TINMAN
- LUMIN programme of continuous development that has seen Roon, MQA, and Spotify support added in 2017 alone.
SPECIFICATION
D2 SPECIFICATION
DSD SUPPORT:
Up to DSD128 5.6MHz, 1-bit
PCM SUPPORT:
Up to 768kHz, 16–32-bit, Stereo
UPSAMPLING RATES & BIT DEPTHS:
DSD upsampling option for all files up to 96kHz
PCM 192kHz upsampling option for all files up to 96kHz
DIGITAL OUTPUT STAGE:
DIGITAL OUTPUT STAGE:
BNC SPDIF:
PCM 44.1kHz–192kHz, 16–24-bit
DSD (DoP, DSD over PCM) 2.8MHz, 1-bit
POWER SUPPLY:
Internal 100–240V AC auto-ranging
PHYSICAL:
FINISH:
Raw brushed aluminium or black anodised brushed aluminium
D2 UNIT:
300mm (W), 244mm (D), 60mm (H), 2.5kg
PACKAGING:
470mm (W), 340mm (D), 170mm (H), 4.5kg
SPECIFICATION FOR ALL LUMIN MUSIC STREAMERS
STREAMING PROTOCOL:
UPnP AV protocol with audio streaming extension (OpenHome)
Roon Ready
TIDAL Connect
Spotify Connect
AirPlay-compatible
Gapless Playback
On-Device Playlist
APP FEATURES:
Native support for TIDAL, MQA, Qobuz and TuneIn Radio.
Tidal MQA icons to identify high-res music
Qobuz high-res icons to identify high-res music
Volume control
High-resolution artwork Artwork
caching
Search
Multiple tag handling
Composer tag support
Album-grouping in playlist
Automatic internet links to artists/album/songs
Saving and restoring of playlists (including Tidal and Qobuz)
SUPPORTED AUDIO FILE FORMATS:
DSD Lossless: DSF (DSD), DIFF (DSD), DoP (DSD)
PCM Lossless: FLAC, Apple Lossless (ALAC), WAV, AIFF
Compressed (lossy) Audio: MP3 MQA (Core decode)
INPUT:
Ethernet RJ45 network 1000Base-T
USB storage, flash drive, USB hard disk (Single-partition FAT32, exFAT and NTFS only)
SUPPORTED CONTROL DEVICES:
Apple devices. iOS 11.0 or later (List of supported devices) Android devices.
Android 4.0 (Ice Cream Sandwich) or later required
OTHER:
Leedh Processing lossless digital volume control
Programme of Continuous Development – Firmware-upgradable for further features and enhancements
