MRK-5FW/32D-B4S6

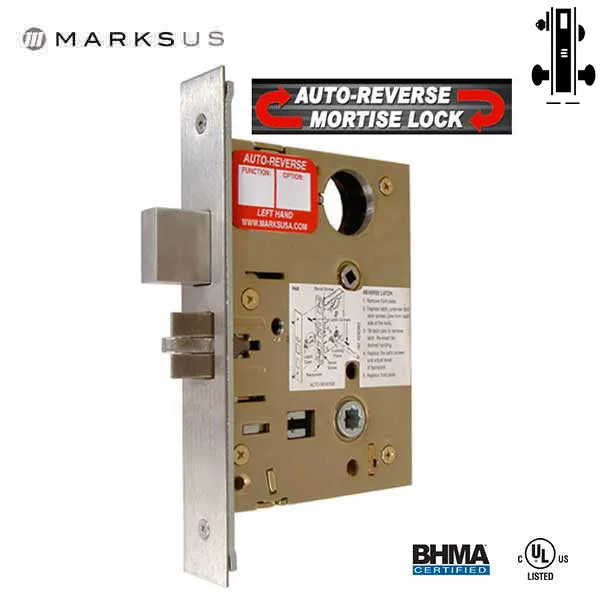

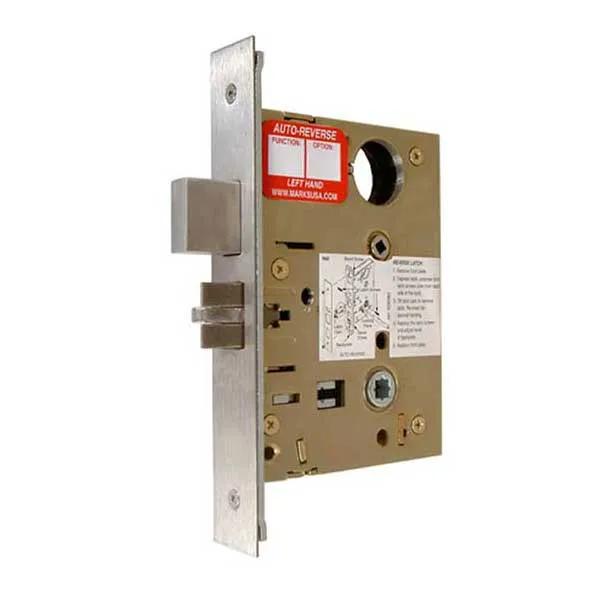

Nova 5 Series Mortise Locksets represent years of development into world class BHMA Certified mortise locksets and carry the Marks Lifetime Mechanical Warranty. Whether your application is a single style single function lockset or an entire complex with multiples and varieties, the Nova Series has the form, fit and competitive price to complete your project.
Note: Lockset comes preconfigured for LH or RH handing but are fully field reversible
More Details Below
| Lock Function | ANSI F12 Dormitory |
| Description | Keyed Single Cylinder, With Deadbolt |
| Lock Front | Adjustable bevel steel backplate 1-1/4” x 8” x 7/64” thick stainless steel. Cover plate 1/16” thick |
| Deadbolt | Stainless steel with hardened roll pins, 1” throw |
| Latch | Solid stainless steel with antifriction latch lever, 3/4” throw (reversible) |
| Auxiliary Deadlatch | 1/2” throw (reversible) |
| Hubs | Steel, 9/32’’ on diamond, 5/16” on square with security separator. Independent exterior and interior lever support springs |
| Lever Support Springs | Lever support springs with 5/16” Hubs |
| Hub Follower | (to lock hub) steel 1/8” thick |
| Hub Stop | (to limit lever travel) steel 1/8” thick. |
| Case | Stamped steel 3/32” thick, zinc dichromate finish. |
| Certifications | ANSI/BHMA Meets or exceeds Series Grade 1 requirements UL Listed 3-hour fire rating ADA Meet Requirements of The Americans with Disabilities Act |
| Manufacturer Warranty | Marks lifetime mechanical warranty |
Lock Function
See Video Below on How to Reverse the Handing on the Nova 5 Series Mortise Locksets
